Broadcast-Grade Performance For Every Production
Whether you’re in the studio or on the go, BitFire’s T4 and NUC Engines provide the power and flexibility you need to transport ultra-low latency, high quality video and audio.
Technical Specs
BitFire T4 Engine Technical Specifications:
Video Encoding - Up to 4x 1080p59.94 paths or 2x 10-bit HDR 1080p59.94 paths
Video Decoding - Up to 4x 1080p59.94 paths
Connectivity -
- 4 bidirectional 3G-SDI BNC ports (independently configurable for transmit/receive)
- 1 reference port (Black Burst or Tri-Level sync)
Audio Integration -
- Up to 16 embedded audio channels per SDI path
- Native AES67/Dante compatibility
Network -
- Ethernet: DHCP (preferred) or static IP configuration
Dimensions and Weight -
- 17.03” x 14.03” x 1.75” (1 RU rack-mountable)
- Weight: 13.8 lbs
Power - Up to 300W max
Technical Specs

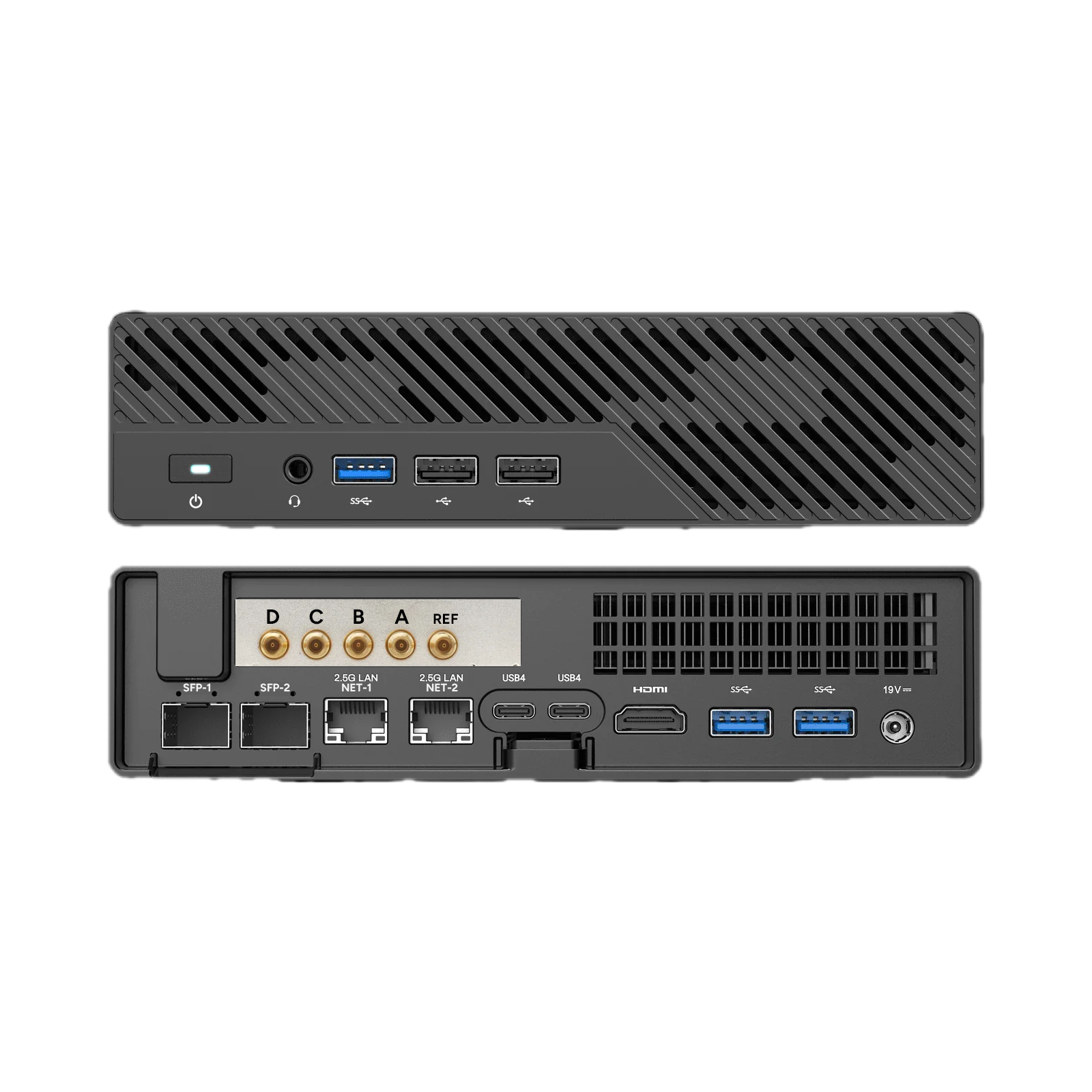

BitFire’s NUC Engine Technical Specifications:
Video Encoding - Up to 2x 1080p59.94 paths or 1x 10-bit HDR 1080p59.94 path
Video Decoding - Up to 4x 1080p59.94 paths
Connectivity -
- 4 bidirectional 3G-SDI BNC ports (independently configurable for transmit/receive)
- 1 reference port (Black Burst or Tri-Level sync)
Audio Integration -
- Up to 16 embedded audio channels per SDI path
- Native AES67/Dante compatibility
Network -
- Ethernet: DHCP (preferred) or static IP configuration
Dimensions and Weight -
- 9.37” x 8.5” x 3.78”
- Weight: 7.4 lbs
Power - Minimal power consumption, optimized for portable setups
